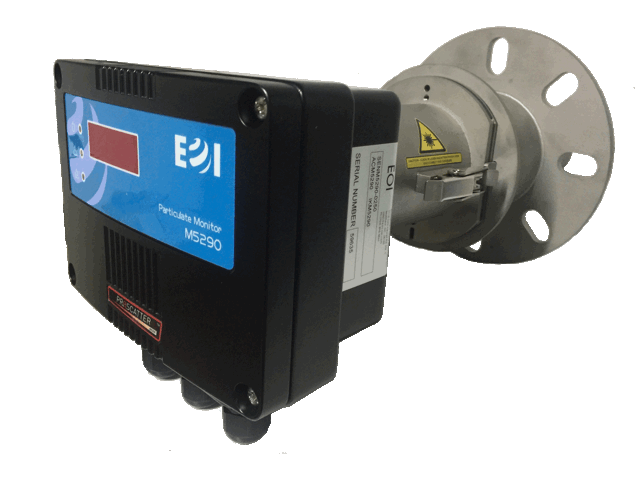

M5290 Particulate Monitor

The M5290 particulate monitor is suitable for measuring dust concentrations in Combustion, Incineration and other industrial stacks and is compliant with EN 14181. Having a 0-15 mg/m³ certification range, the M5290 sensor can be used at low or high dust levels. Due to dynamic ranging, the sensor is also suitable for much higher dust levels found in Power, Cement and Metals smelting processes.

The sensor is available as a standalone version, the compact M5290c or the M5290s which is combined with a EOI Control Unit to provide either a standard single-channel system or a multi-channel PRO system for an extensible network (up to 32 sensors). Using a multiple-sensor system based on a ProController allows other sensors from the EOI range to be added (such as Gas Flow, Temperature and Pressure sensors) for Mass Emissions Monitoring, Bagfilter Management as part of a CEM system including Gas Analyzers.
​


Key Features

  • ProScatter™ Backscatter sensor technology with superior minimum detection <1 mg/m³
  • Certified to 15 mg/m³ for processes with low typical emission limits
  • Manual and remote Zero and Span (reference) checks available to ensure optimal instrument performance and to comply with EN 13284/QAL1
  • Automatic Functionality Check – fully interrogates the optical system
  • Purge Flow Fail Sensor option with inbuilt automatic optical shield activation
  • Dust Tools PC Software option to provide secure and powerful emissions reporting, real-time and historical data analysis
  • Ex Zone 2 capable (pending)
  • Patent applied for (pending)


Typical Applications

The M5290 is used to monitor emissions from the following types of applications:
  •  Power Plant and Combustion Processes including:
          Coal fired power stations
          Gas/Oil fired power stations
          Refinery boilers
          Biomass power plant
  • Chemical, Mineral and Metal processes where stack size greater than 2m
  • Non-condensing/dry flue gases
​
Performance
Dust Measurement Range   <1-500 mg/m³
Air Purge Requirement        EOI supplied blower or suitably conditioned instrument air
Stack Diameters                  <1 - 10m
Stack Temperatures            -20°C to 400°C


Sensor

316 Stainless Steel
IP65 Protection Rating
Power: 100 - 240V AC or 24V DC
Automatic Functionality Check
Air Purge Flow Sensor Option including optical shield for contamination minimization
Flue Gas Temperature (at monitoring point):  0-250°C, option up to 400°C
Flue Gas Blocker (shutter) option
​

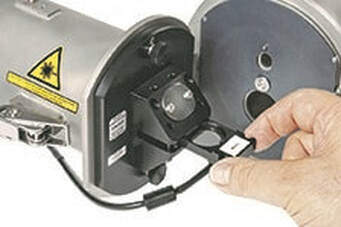

                                                                                                                                                                        M5290 Sensor with Audit Unit and Attenuator
